MOLD TEMPERATURE CONTROLLER

MOLD TEMPERATURE CONTROLLER
MOLD TEMPERATURE CONTROLLER
Product Code : 24
Product Description

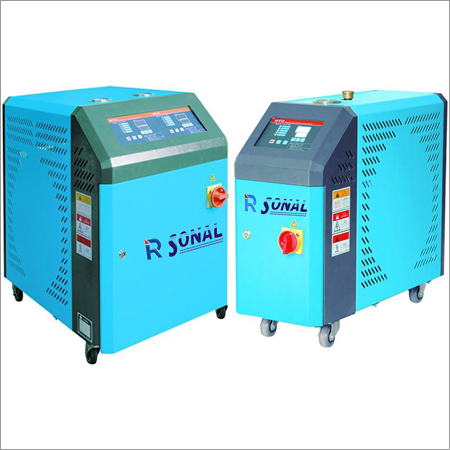

MOLD TEMPERATURE CONTROLLER

Mould Temperature Controller is mainly used for mould heating and keeps constant temperature. This series adopts heat-exchanging principle, uses water or high heat conduction oil as media and keeps mould in constant temperature during molding. the optimized design ensuring the heating temperature up to 200°C.

Characteristics Of Machine

  • Computer temperature control, direct-view and easy and simple for operation, PID temperature control with high accuracy and stable temperature controlling, the accuracy is ±1°C within.
  • Use horizontal pump, running in smooth and steady, stable flow with long using life.
  • Cylindrical tube design, pressurization and explosion-proof.
  • Automatic alarming function, alarming and automatic stops when the system has the breakdown.
  • Attractive appearance, easy-dismount design, convenient for maintenance.
  • Two specifications of water and oil for customer’s selection.

Specification/Model


RTC-630W

RTC-950W

TRC-1290W

RTC-630

RTC-950W

RTC-1290-0

Maximum temperature

C

120 Water

200 Oil

Cooling method


Direct Cooling



Indirect Cooling



Motor power

Kw

6

9

12

6

9

12

Pump mold

kw

0.37

0.75

1.5

0.37

0.75

1.5

Maximum Run off

L/min

30

45

75

30

45

75

Max pressure

Bar

3.5

3.5

5.5

3.5

3.5

5.5

Mold connecting

Inch

3/8”(2x2)

3/8”(2x2

3/8”(4x2)

3/8”(2x2)

3/8”(2x2)

3/8”(4x2)

External Size (HxWxL)

mm

650x300x750

650x300x750

700x300x750

650x300x750

650x300x750

800x950x750

Weight

Kg

60

65

85

64

69

90
