Home » Products » Vaccum Autoloader » VACUUM AUTOLOADER RAL SERIES

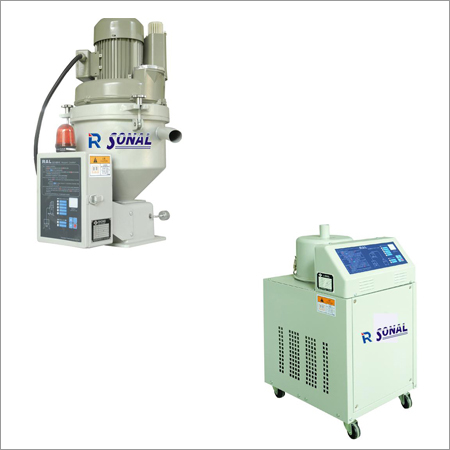

VACUUM AUTOLOADER RAL SERIES

VACUUM AUTOLOADER RAL SERIES
VACUUM AUTOLOADER RAL SERIES
Product Code : 22
Product Description

VACUUM AUTOLOADER RAL SERIES

RAL series auto-loading machine uses stainless steel charge basket and high-efficiency vacuum motor with motor overload protection and material shortage auto-alarming device, it has the characters of light and durable, strong suck force, simple and easy for installation, and operation.

Characteristics Of Machine

  • The separable design of main machine with charge basket, safe and convenient.
  • Stainless steel charge basket, light, durable, easy for material clean.
  • The overload device on motor.
  • Computer control operation, simple and easy for operation.
  • Independent filter cleaner, convenient for accumulated dust cleaning.
  • Quiet device, reduce the operation noise.
  • The material shortage auto-alarming protection device.


Specification/Model


RAL-300I

RAL-403I

RAL-300

RAL-303

RAL-503

RAL-703

RAL-903

RAL-323

RAL-523

Motor Type


Carban Brush

1100w1

Induction 1.5HP 3

Carbon Brush

1100w1

Induction

2HP3

Induction

3HP3

Induction

4HP 3

Induction

5.5HP3

Induction

2HP 3

Induction

3HP3

Conveying Capacity

Kg/hr

300

400

300

400

550

750

900

400

550

Capacity of charge basket

L

6

10

6

6

6

20

20

6x6

6x6

Inside diameter of conveying

mm

38

38

38

38

38

51

51

38

38

Main body size (HxLxW)

mm

550x400x350

800x450x4

50

550x450x300

650x450x400

650x450x4

00

1400x500x50

0

1400x500x500

750x450x400

750x450x400

Hopper size (HxLxW)

mm

-

-

450x350x250

450x350x250

500x450x3

00

800x450x300

800x450x300

450x350x250

450x350x25

0

Main body weight

kg

12

25

20

45

55

130

150

45

55

Hopper weight

kg

-

-

5

5

5

15

15

5

5
