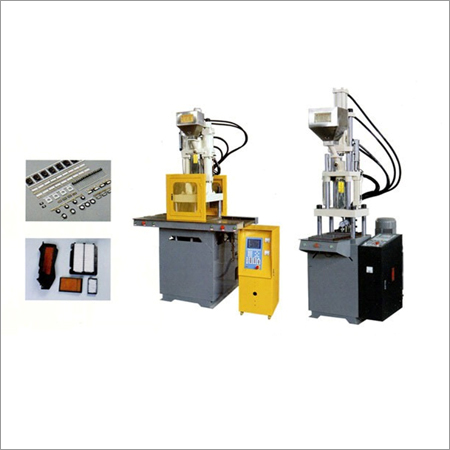

Vertical Injection Machine Parameter

Vertical Injection Machine Parameter
Vertical Injection Machine Parameter
Product Code : 14
Product Description

Vertical Injection Machine Parameter

Model

Unit

HT15

HT35

HT45

HT60

HT85

HT120

HT150

HT210

HT250

HT3500

Injection unit

Screw diameter

mm

¢22

¢25

¢25

¢28

¢28

¢32

¢30

¢32

¢35

¢32

¢35

¢38

¢35

¢38

¢42

¢38

¢42

¢46

¢42

¢46

¢50

¢60

¢65

¢65

¢75

Theoretical injection volume

cm3

40

52

59

74

80

104

106

120

144

129

154

181

173

204

249

227

277

332

305

365

432

706

829

928

1077

Shot weight

g

36/1.3

46/1.3

55

70

75

99

100

114

136

122

145

171

163

193

236

214

262

314

287

345

408

630/22.2

740/26

829/29.2

961/33.8

Injection pressure

Kg/cm2

1627

1260

1850

1475

1959

1450

2160

1898

1587

2039

1704

1446

1959

1662

1361

2011

1646

1372

1959

1633

1382

1588

1353

1590

1370

Injection speed

cm3/s

32.9

42

42

58

60

79

65

74

88

80

96

113

98

115

141

118

144

173

160

193

228

189

221

185.6

215.4

Screw speed

rpm



180

200

200

200

200

200

200





Clamping unit












Clamping force

T

15

35

45

60

85

120

150

210

250

350

Min mold height

mm

120

100/180

150/250

150/250

170/300

200/300

200/350

250/350

350

300

Open stroke

mm

160

200

225

250

250

300

300

350

400

450

Max open daylight

mm

280

300/380

375/475

400/500

450/550

500/600

550/650

600/700

750

750

Space between tie-bar

mm

280×145

370X230

410X250

460X310

510X340

610X400

660X630

720X670

700X720

830*600

Platen size

mm

500×330

550X410

610X460

680X540

740X570

890X680

960X930

1050X1000

680X650

750*580

Ejector stroke

mm

40

40

40

40

65

75

80

100

100

150

Eject force

T

1.3

1.3

1.3

2.2

2.2

4

5.4

7

6.5

6.1

Hydraulic unit












Hydraulic pressure

Kg/cm2

140

140

140

140

140

140

140

140

140

140

Motor power

KW

3

4

5.5

7.5

11

11

15

18.5

30

37

Heating power

KW

2.1

2.9

3.6

4.1

5.25

5.9

6.55

7.45

16.8

19.8

Total wattage

KW

5.1

6.9

9.1

11.6

16.25

16.9

21.55

25.95

46.8

56.8

Others



























Machine size

m

1.3*0.8*2.3

1.35X1X2.3

1.4X1.1X2.4

1.55X1.2X2.8

1.75X1.2X2.8

2.4X1.5X3.6

2.5X1.65X3.8

2.5X1.65X3.8

2.8X1.7X4.6

3.2*1.8*5.1

Machine weight

T

0.66

1

1.5

2.1

2.5

6.5

7.3

7.3

10.3

12.9
